Dokumentacja
-
Karta techniczna

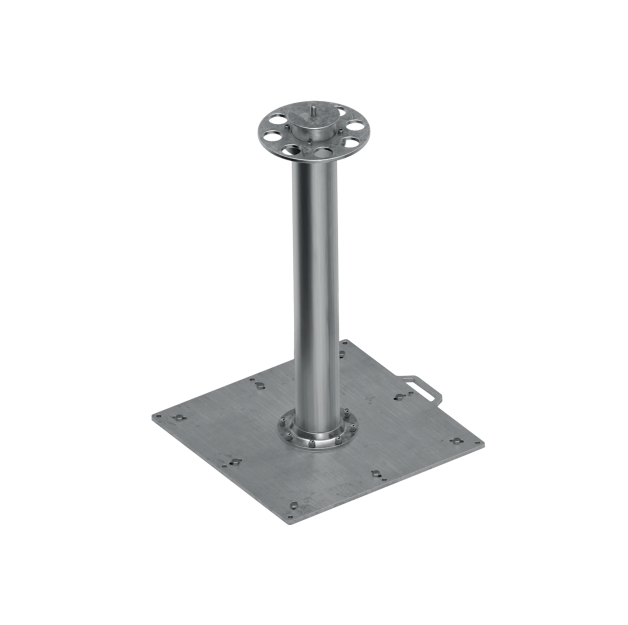

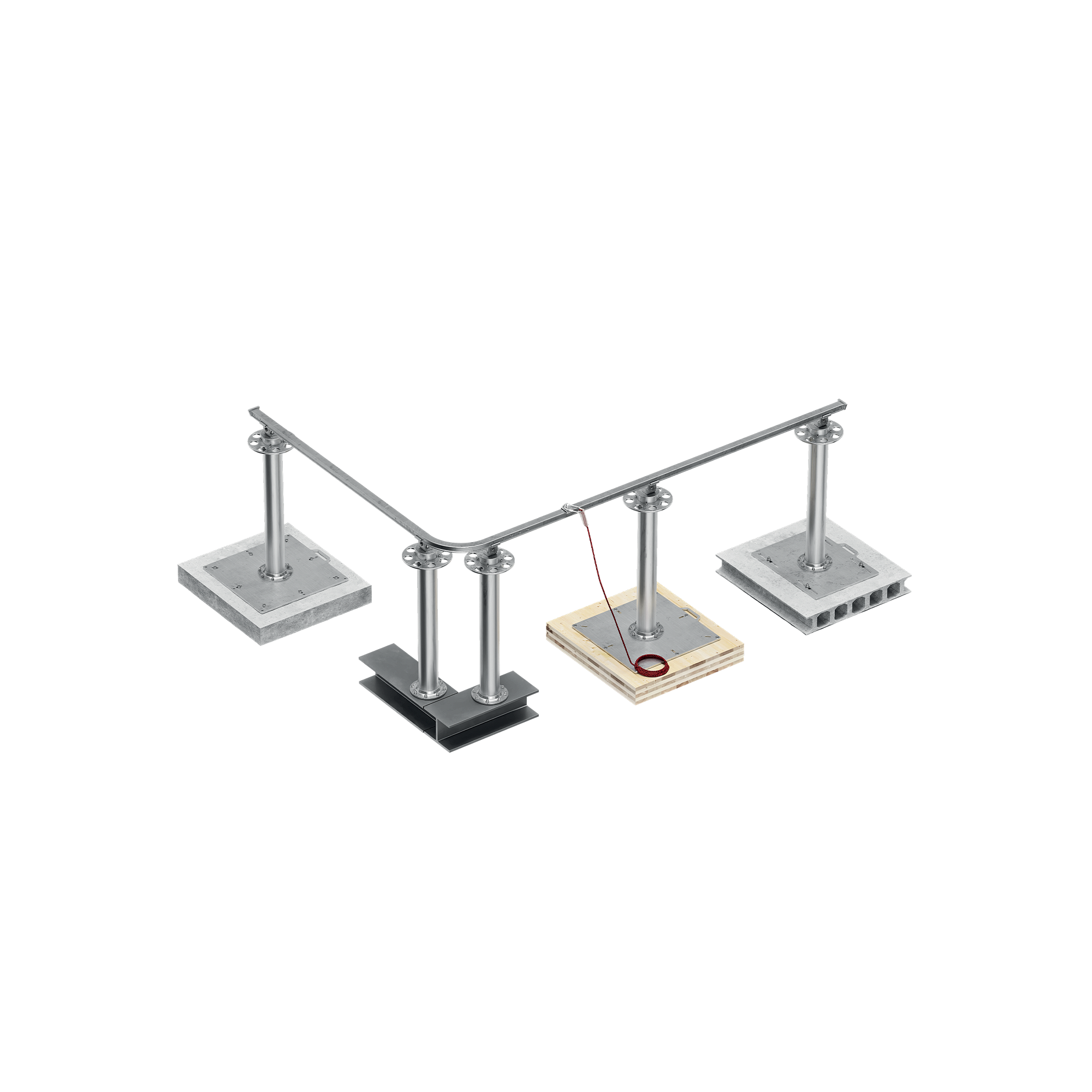

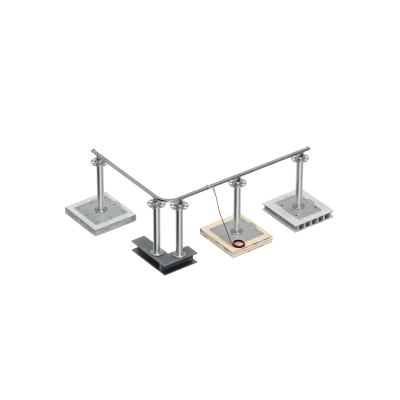

SOLID
| CODE | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|
| SOLID400 |
New
|
EN AW-6082-T6 | 220.5 | 400 | - | 1 |
| SOLID600 |
New
|
EN AW-6082-T6 | 220.5 | 600 | - | 1 |
| SOLID800 |
New
|
EN AW-6082-T6 | 220.5 | 800 | - | 1 |
| SOLID1000 |
New
|
EN AW-6082-T6 | 220.5 | 1000 | - | 1 |
| SOLIDRIG |
New
|
EN AW-6082-T6 | - | - | - | 1 |
| SOLIDPLATE |
New
|
EN AW-6082-T6 | 550 | - | 595 | 1 |
| SOLIDPLATEHC |
New
|
EN AW-6082-T6 | 650 | - | 545 | 1 |
| SOLIDPLATEHD |
New
|
EN AW-6082-T6 | 650 | - | 695 | 1 |

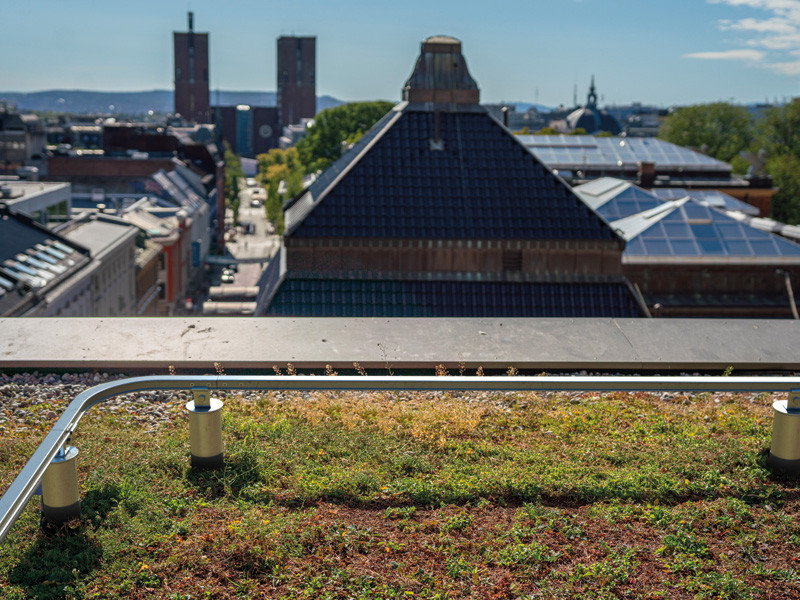

RAIL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAIL3000 | 3m aluminium rail | EN AW 6063 (T6) | 49 | 41 | 3000 | 1 |
| RAILC90 | 90° curved rail | EN AW 6063 (T6) | 475 | 41 | 475 | 1 |
| RAILC120 | 120° curved rail | EN AW 6063 (T6) | 336 | 41 | 538 | 1 |
| RAILC135 | 135° curved rail | EN AW 6063 (T6) | 257 | 41 | 536 | 1 |
| RAILC150 | 150° curved rail | EN AW 6063 (T6) | 178 | 41 | 512 | 1 |
SUPPORT
| CODE | description | pcs. |
|---|---|---|
| RAILBRAT | rail bracket | 1 |
| RAILBRAT12 | rail bracket | 1 |
| RAILBRATW | rail bracket | 1 |
| RAILBRAS | rail bracket | 1 |
| RAILBRAW | rail bracket | 1 |
TERMINAL ELEMENT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|---|
| RAILEND | rail terminal element | AISI 304 stainless steel grade 1.4301 | 84.5 | 48.6 | 55 | 1 | |
| RAILENDA4 |
New
|
rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 48.6 | 55 | 1 |
| RAILENDOPEN | rail terminal element | AISI 304 stainless steel grade 1.4301 | 49 | 49 | 60 | 1 | |
| RAILENDOPENA4 |
New
|
rail terminal element | AISI 316 stainless steel grade 1.4401 | - | 49 | 60 | 1 |
JOINT
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUN | rail junction element | EN AW 6082 | 28.7 | 32.7 | 340 | 1 |
SLIDING DEVICE
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. | |
|---|---|---|---|---|---|---|---|
| RAILSLIDE | sliding device | AISI 304 stainless steel grade 1.4301 | 50 | 51 | 70 | 1 | |
| RAILSLIDEA4 |
New
|
sliding device | AISI 316 stainless steel grade 1.4401 | 50 | 51 | 70 | 1 |
| RAILSLIDEOH | sliding device | AISI 304 stainless steel grade 1.4301 | 72 | 72 | 95 | 1 | |
| RAILSLIDEOHA4 |
New
|
sliding device | AISI 316 stainless steel grade 1.4401 | 72 | 72 | 95 | 1 |
TOOL
| CODE | description | material | B
[mm]
|
H
[mm]
|
L
[mm]
|
pcs. |
|---|---|---|---|---|---|---|
| RAILJUNTOOL | rail tool | EN AW 6082 - 1.1191 (C45E) aluminium | 92 | 116 | 132 | 1 |
| RAILPLATE | rail id plate | - | - | 40 | 140 | 1 |
FASTENING
| CODE | description | material | pcs. | |
|---|---|---|---|---|
| RAILOCKSCREW | lock screw | A2-70 | 250 | |
| RAILSCREW | DIN 7991 A2-70 | A2-70 | 50 | |
| RAILSCREWA4 |
New
|
DIN 7991 A4-70 | A4-70 | 50 |
TARGAHORxy
| CODE | description | pcs. |
|---|---|---|
| TARGAHORIT | Label plate for PATROL and H-RAIL systems IT | 1 |
| TARGAHORDE | Label plate for PATROL and H-RAIL systems DE | 1 |
| TARGAHOREN | Label plate for PATROL and H-RAIL systems EN | 1 |
| TARGAHORES | Label plate for PATROL and H-RAIL systems ES | 1 |
| TARGAHORFR | Label plate for PATROL and H-RAIL systems FR | 1 |
| TARGAHORPT | Label plate for PATROL and H-RAIL systems PT | 1 |
| TARGAHORRU | Label plate for PATROL and H-RAIL systems RU | 1 |
| TARGAHORCS | Label plate for PATROL and H-RAIL systems CS | 1 |
| TARGAHORDA | Label plate for PATROL and H-RAIL systems DA | 1 |
| TARGAHOREL | Label plate for PATROL and H-RAIL systems EL | 1 |
| TARGAHORET | Label plate for PATROL and H-RAIL systems ET | 1 |
| TARGAHORFI | Label plate for PATROL and H-RAIL systems FI | 1 |
| TARGAHORHR | Label plate for PATROL and H-RAIL systems HR | 1 |
| TARGAHORHU | Label plate for PATROL and H-RAIL systems HU | 1 |
| TARGAHORIS | Label plate for PATROL and H-RAIL systems IS | 1 |
| TARGAHORJA | Label plate for PATROL and H-RAIL systems JA | 1 |
| TARGAHORLT | Label plate for PATROL and H-RAIL systems LT | 1 |
| TARGAHORLV | Label plate for PATROL and H-RAIL systems LV | 1 |
| TARGAHORNL | Label plate for PATROL and H-RAIL systems NL | 1 |
| TARGAHORNO | Label plate for PATROL and H-RAIL systems NO | 1 |
| TARGAHORPL | Label plate for PATROL and H-RAIL systems PL | 1 |
| TARGAHORRO | Label plate for PATROL and H-RAIL systems RO | 1 |
| TARGAHORSK | Label plate for PATROL and H-RAIL systems SK | 1 |
| TARGAHORSL | Label plate for PATROL and H-RAIL systems SL | 1 |
| TARGAHORSV | Label plate for PATROL and H-RAIL systems SV | 1 |
| TARGAHORTR | Label plate for PATROL and H-RAIL systems TR | 1 |
| TARGAHORZH | Label plate for PATROL and H-RAIL systems ZH | 1 |
| TARGAHORAR | Label plate for PATROL and H-RAIL systems AR | 1 |
