AOS01 + SHIELD
PUNKT KOTWICZĄCY DO POKRYĆ DACHOWYCH Z BLACHY TRAPEZOWEJ

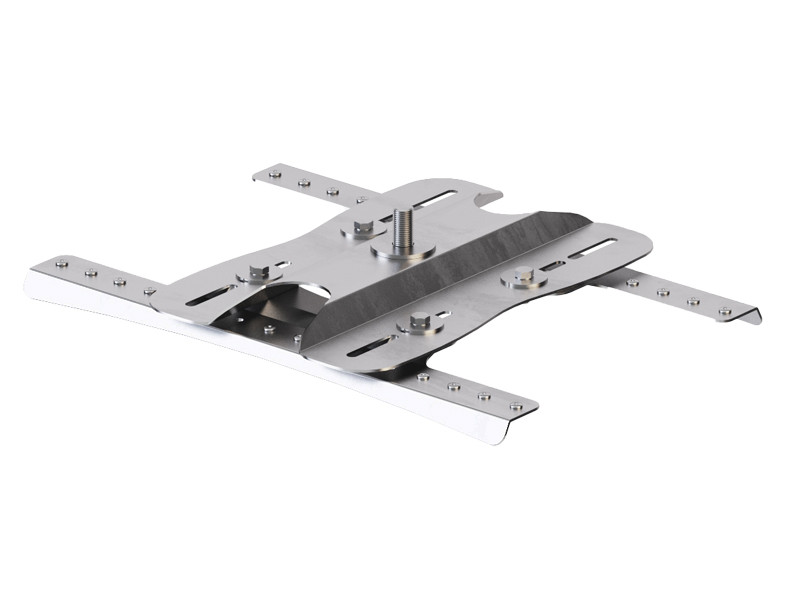

SHIELD to idealny wspornik do montażu punktu kotwiczącego AOS01 na dachach pokrytych blachą trapezową. Dzięki niewielkim wymiarom system zapewnia minimalny efekt wizualny po zainstalowaniu.
Opis

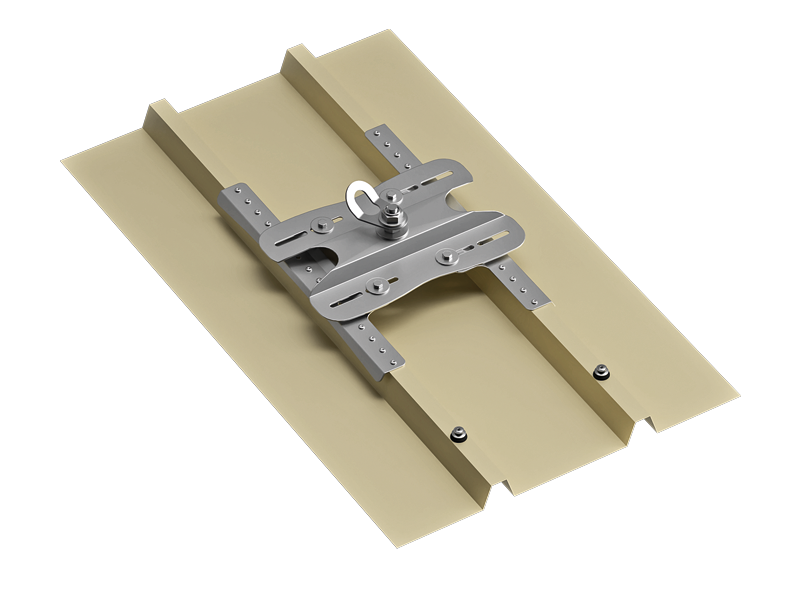

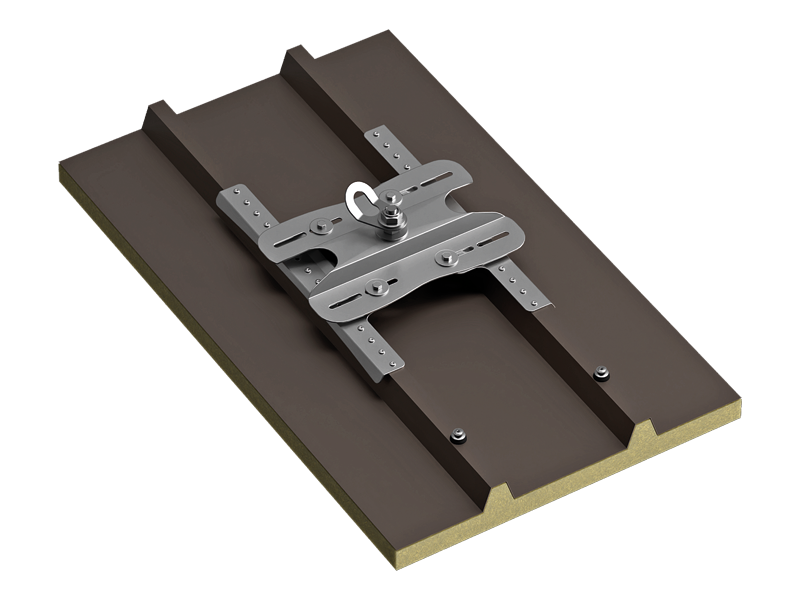

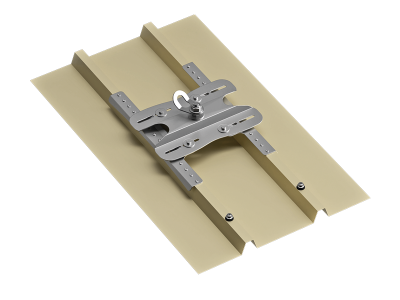

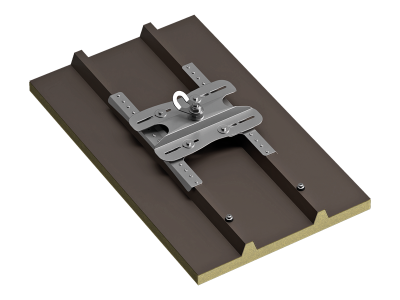

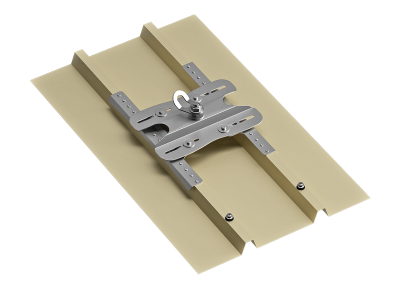

AOS01 z SHIELD, Twój punkt kotwiczący na dachach z blachy trapezowej.
System dostarczany jest z nitami do montażu i uszczelkami z kauczuku komórkowego, zapewniającymi optymalną szczelność. Jest odporny na naprężenia w płaszczyźnie (360°) i może być montowany na dachach płaskich i pochyłych.
